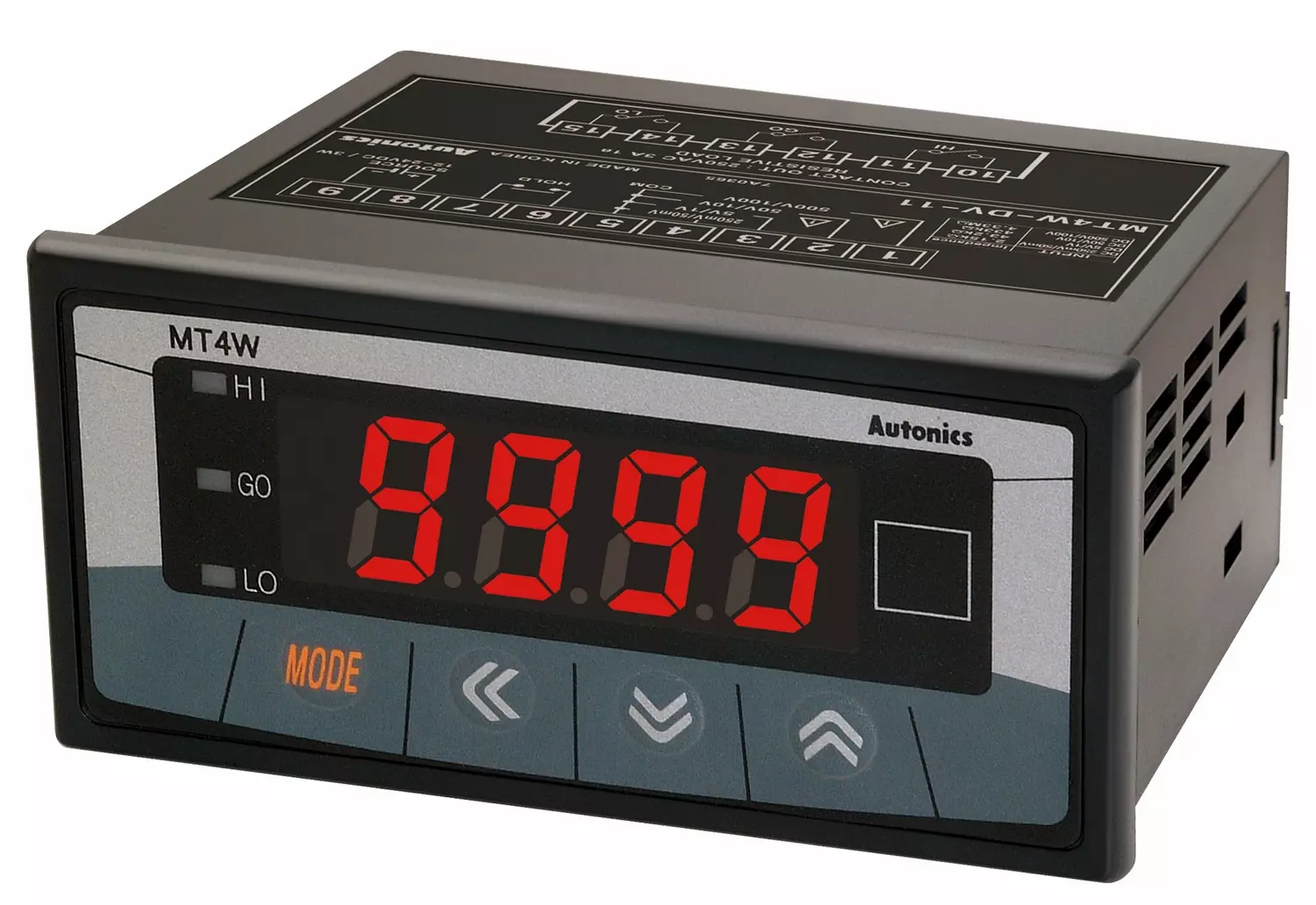

Multi panel meter MT4Y/MT4W series has various functions such as AC frequency measuring function, zero adjustment function and transmission output scale function. This series is the super version of panel meter which realizes -1999 to 9999 max display range, wide power supply range and various output option selection.
Features
- Super version panel meter

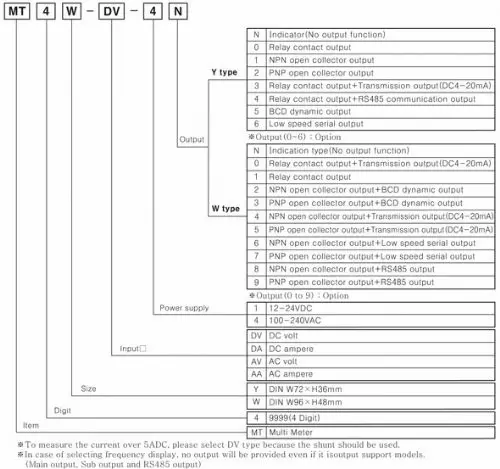

- Various output options (Default : Indicator)
: RS485 communication output, low speed serial output, current(4-20mA) output, BCD output, NPN/PNP open collector output, relay output

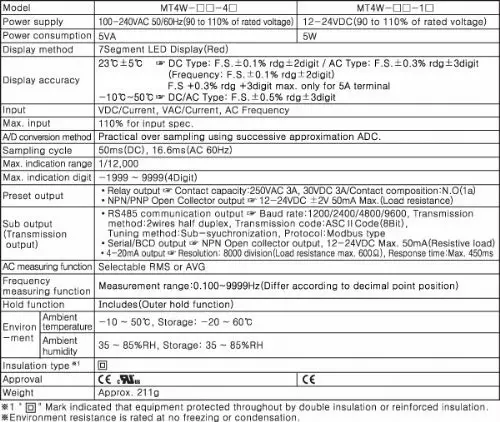

- Max. measuring input specification : 500VDC, 500VAC, 5ADC, 5AAC
- Max. display range : -1999 ~ 9999
- Prescale function
- AC frequency measurement (0.1 ~ 9999Hz)
- Various functions
: Monitoring for max./min. display value function, Display cycle delay function, Zero adjustment function, High display correction function, Current output scale function, etc.
- Wide range of power supply : 100-240VAC, 12-24VDC(MT4W only)
Uses
Applicable to rpm display, temperature display in factory, system voltage, current and frequency measurement.
